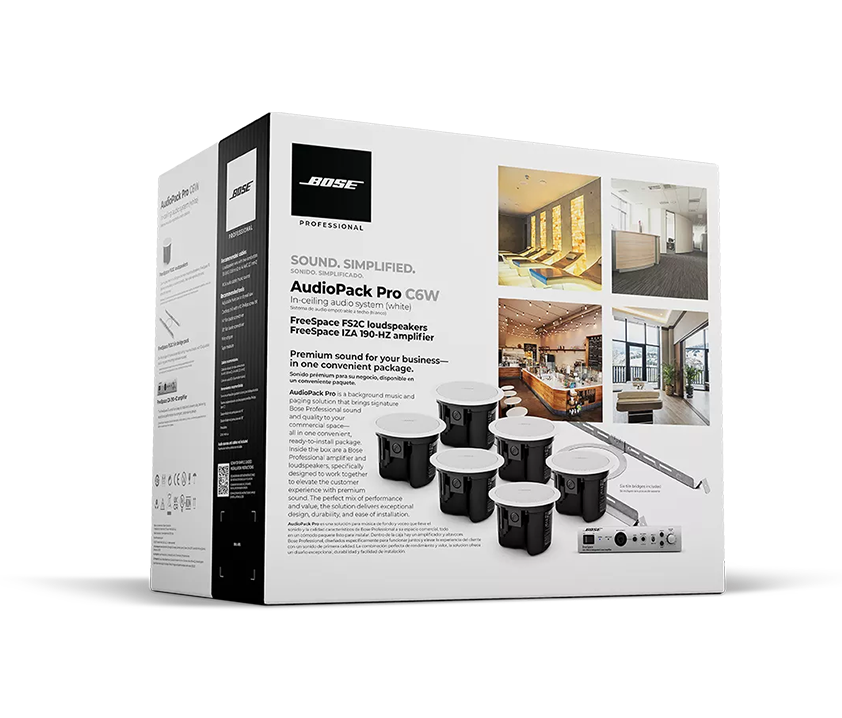

Bose AudioPack Pro is a background music and paging solution that brings the signature sound and quality of Bose Professional to your business—all in one convenient, ready-to-install package. Inside the box are a Bose Professional amplifier and loudspeakers, specifically matched to elevate the customer experience with premium audio. The ideal mix of performance and value, this solution delivers exceptional durability, clean design, and ease of installation. The system features FreeSpace FS, our trusted line of in-ceiling and surface-mount loudspeakers. The perfect mix of performance and value, they combine durability, clean design, and ease of installation. FreeSpace FS loudspeakers deliver remarkably consistent tonality, clear voice reproduction, and smooth response. Plus, their pleasing aesthetic blends into any environment.
-
FreeSpace FS loudspeakers provide durability and performance, pleasing aesthetics, and ease of installation—with remarkably consistent tonality
-
FreeSpace IZA 190-HZ integrated zone amplifier delivers premium sound, simple setup, easy daily operation, and the flexibility to expand when more loudspeakers are required
-
Simple instructions available via QR code on the box that guide you through the install process—with professional tech support available if needed
-
Three different system packages for flexibility to meet your specific requirements
-
Hear the best of both music and voice with transducers that offer clear voice reproduction and smooth response for background music
-
Modern aesthetics and practical features blend with many room layouts. Available in black and white and includes removable logos for a cleaner, unbranded appearance.
Applications
Designed for a wide range of applications, including:
- Small businesses
- Cafés and coffee shops
- Retail stores
- Restaurants
- Offices
- Salons and spas
- Schools
Technical Specification
AMPLIFICATION
-
Rated Power, Symmetrical
-
90 W at 70V, 100V
-
THD+N
-
≤ 1% at full rated power
AUDIO INPUTS, ANALOG
-
Adjustment Range
-
-20 dB to +20 dB, line / 0 dB to +50 dB, mic/line / 0 dB to +50 dB, page / fixed, auxiliary
-
Input Channels
-
2 unbalanced, line + 1 balanced, mic/line + 1 balanced, mic (page) + 1 unbalanced, line (auxiliary)
-
Input Impedance
-
20 kΩ, line / 2 kΩ, mic/line / 2 kΩ, page / 20 kΩ, auxiliary
-
Input Range
-
-10 dBV to +10 dBV, line / -60 dBV to +10 dBV, mic/line / -60 dBV to +10 dBV, page / 0 dBV to +10 dBV, auxiliary
-
Maximum Input Level
-
+10 dBV
-
Nominal Input Level
-
0 dBV, line / -40 dBV, mic/line / -40 dBV, page / 0 dBV, auxiliary
-
Sensitivity
-
0 dBV, auxiliary / N/A, line, mic/line, page
AUDIO OUTPUTS, ANALOG
COMPLIANCE
ELECTRICAL
-
Mains Connector
-
IEC C14 inlet
-
AC Power Consumption
-
15 W idle, 200 W maximum
INDICATORS AND CONTROLS
-
Controls, Front Panel
-
(1) power switch, (1) input selection switch, (1) treble knob, (1) bass knob, (1) mic/line gain knob, (1) master level knob
INTEGRATED DSP
-
A/D and D/A Converters
-
48 kHz / 24-bit
PHYSICAL
-
Ceiling Cutout
-
6.3 in (160 mm)
-
Cooling System
-
Natural convection
-
Logo
-
Rotatable, removable
PERFORMANCE
-
Frequency Range (-10 dB)
-
83 – 19,000 Hz
-
Coverage, Horizontal
-
150°
-
Power Handling, Peak
-
64 W
-
Transformer Taps, 100V
-
2, 4, 8, 16 W, bypass
-
Transformer Taps, 70V
-
1 W, 2 W, 4 W, 8 W, 16 W, bypass
TRANSDUCERS
Product codes
- 888472-1210
- AudioPack Pro C6W, white, 120V, North America
- 892254-1210 (NEW)
- AudioPack Pro C6W, white, 120V, North America
